Automatic feeding system

Automatic feeding machine is a device that automatically distributes the feed evenly to each of the chicken feeding through. The chicken can be fed on time and in quantity according to their need.

From chicken cage and poultry equipment factory direct to your farm , no middleman, save cost

Contact: Alex Sun, email: sales@chinachickenfarm.com  mobile/whatsapp/viber: +86 15131651019.

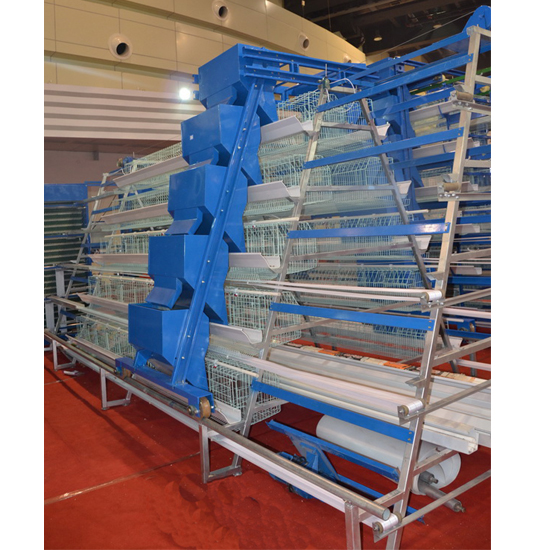

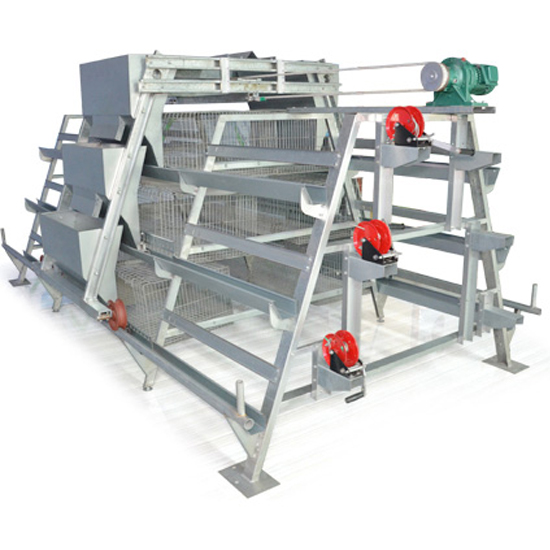

Automatic Feeding machine:

Automatic feeding machine is a device that automatically distributes the feed evenly to each of the chicken feeding through. The chicken can be fed on time and in quantity according to their need. Thereby automatic feeding machine can reduce the labor cost and reduce the feeding food waste.

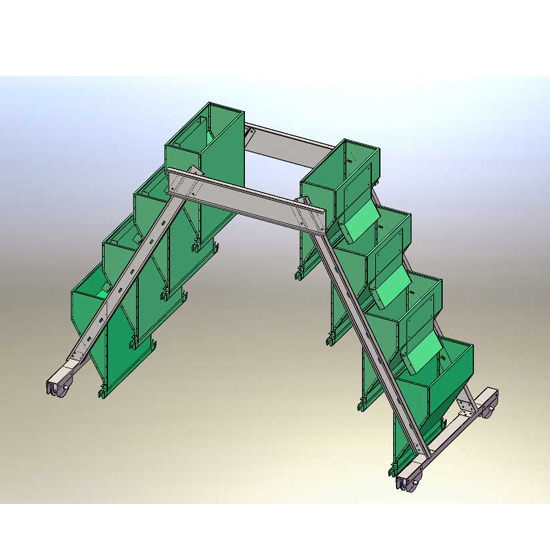

Automatic feeding machine consists of the power system, walking system, lifting system and other components.


Automatic feeding machine Specification,

No.Item
1Source Type2, 3-phase
2Rated power0.75Kw-0.11Kw
3Voltage220V/380
4Outline Size(L*W*H)(2.3-2.7)m*(1.2-1.5)m*(2.0-2.25)m
5Hopper Size(L*W*H)0.66m*0.25m*0.5m
6Working Average of the HopperAbout 15g/m
7Feeding Capacity of each Hopper35Kg-100Kg/Hopper
8Working Speed10-15m/min
9Structure Weight550Kg
10OrbitsDiam 50mm,the length according to the chicken house
11Orbits materialGalvanized pipe
12Transverse conveyor equipmentDiameter,75mm-150mm


Features,

1. Mechanical transmission running smoothly, low noise, long service life;

2. Feeding and sub-material all the use of automated control process to prevent the waste of feed;

3. Material car cross-beam parts with arched structure, with a high carrying capacity, small deformation under pressure;

4. The product of a one-time investment is small, and in use has the advantages of saving labor and saving feed, feed evenly, and greatly enhance the benefits of large-scale breeding;

5. The use of imported electronic silicon controlled broadcast, the amount of each layer can be freely controlled feed, unloading uniform, stable operation, not derailed.

6. The automatic feeding machine can feed several tiers at the same time, suitable for powder or pellet feeding.


The Automatic feeding machine feeding process as below,

1.Put the feeding feed in the silo,

2.Convey the feed from the silo to the hopper of automatic feeding machine

3.The automatic feeding machine feed the chicken.
